Kohler ANTHEM™ Two-outlet Thermostatic Concealed Shower Mixer - K-26346T-9-CP

New! Luxury ANTHEM™ collection by Kohler

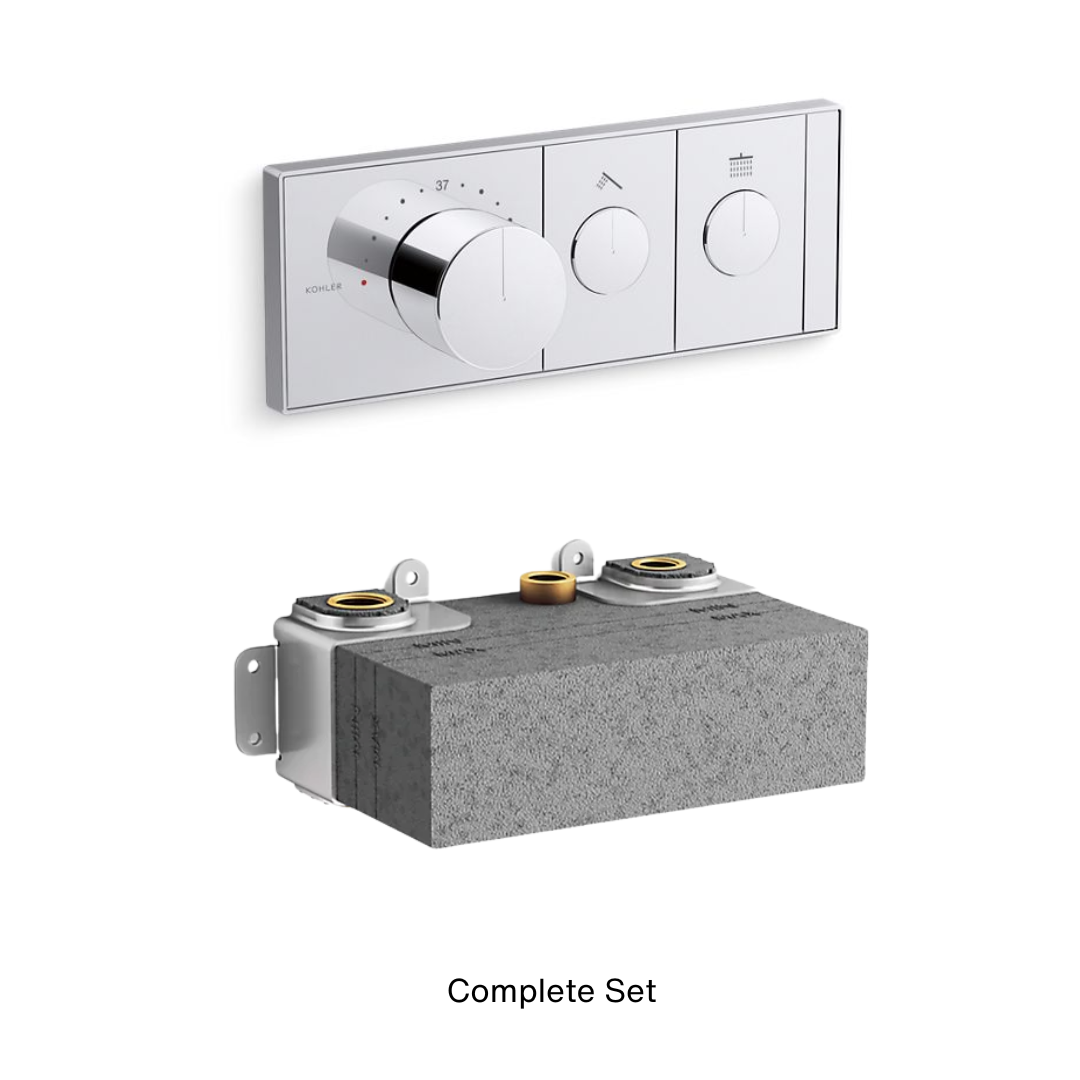

NOTE: The concealed shower mixer requires both external plate and internal recessed valve to work.

This is the mixer unit ONLY. Rainshower, handshower, wall outlet, shower hose, handshower holder/sliding bar are to be purchased separately if required.

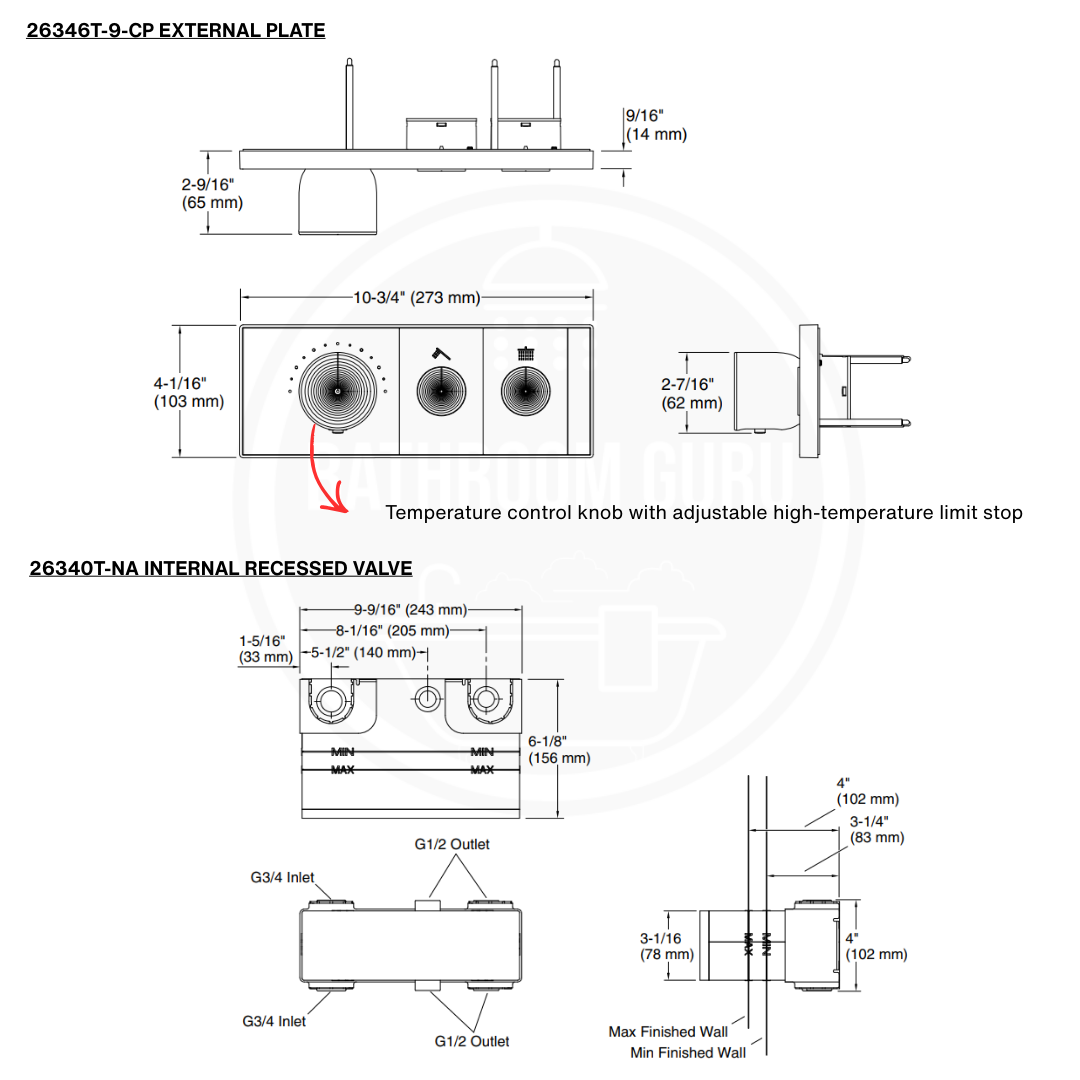

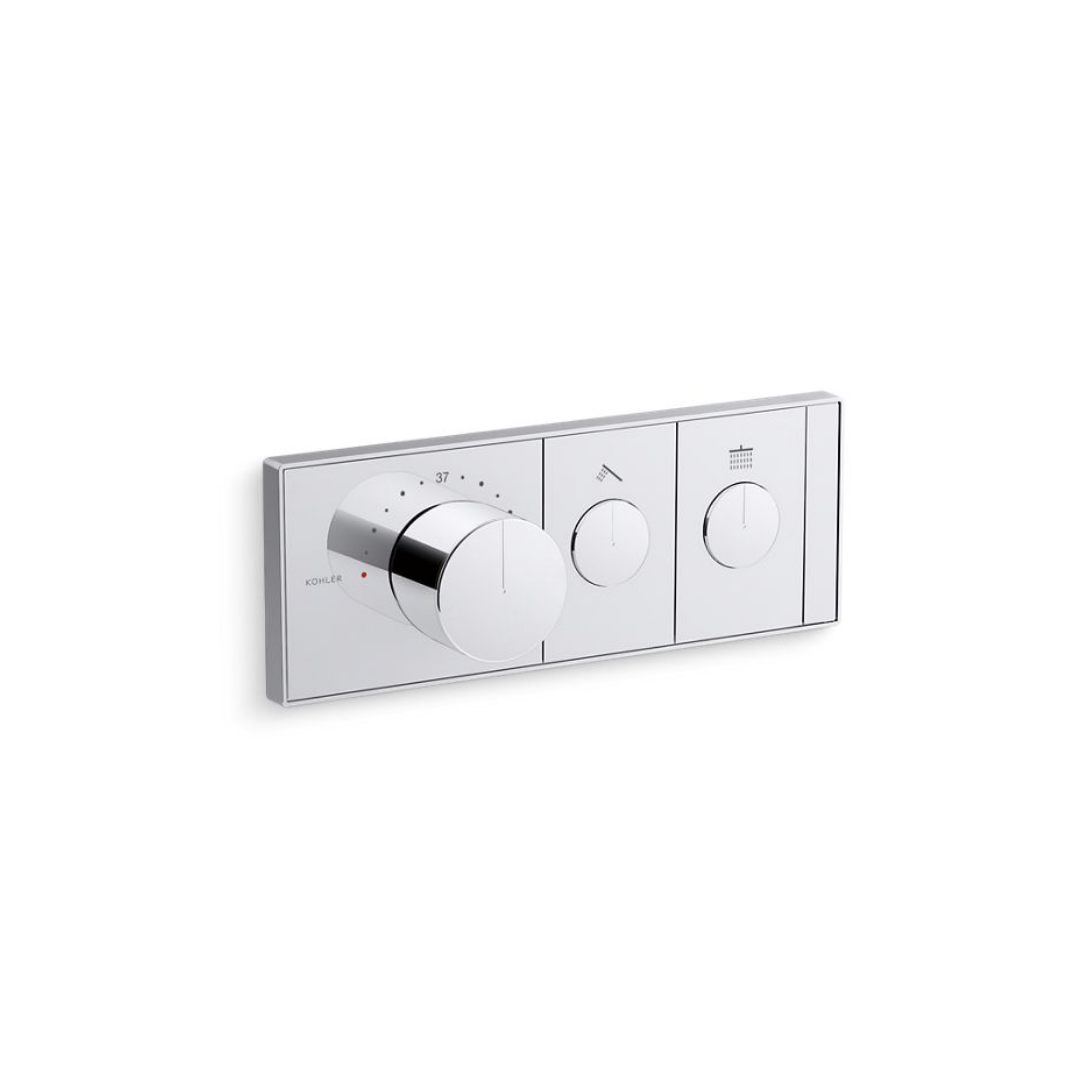

Features of the External Plate K-26346T-9-CP

• Trim plate includes temperature control knob with integrated
adjustable high-temperature limit stop and shower outlet on/
off buttons.

• High-temperature limit setting for added safety.
• Low-profile design with easy-to-clean water-resistant casing.
• Requires two-port thermostatic valve with integral volume
control (sold separately).
• Handles up to 8 gpm (30.3 lpm) flow capacity (rate may vary
by installation).

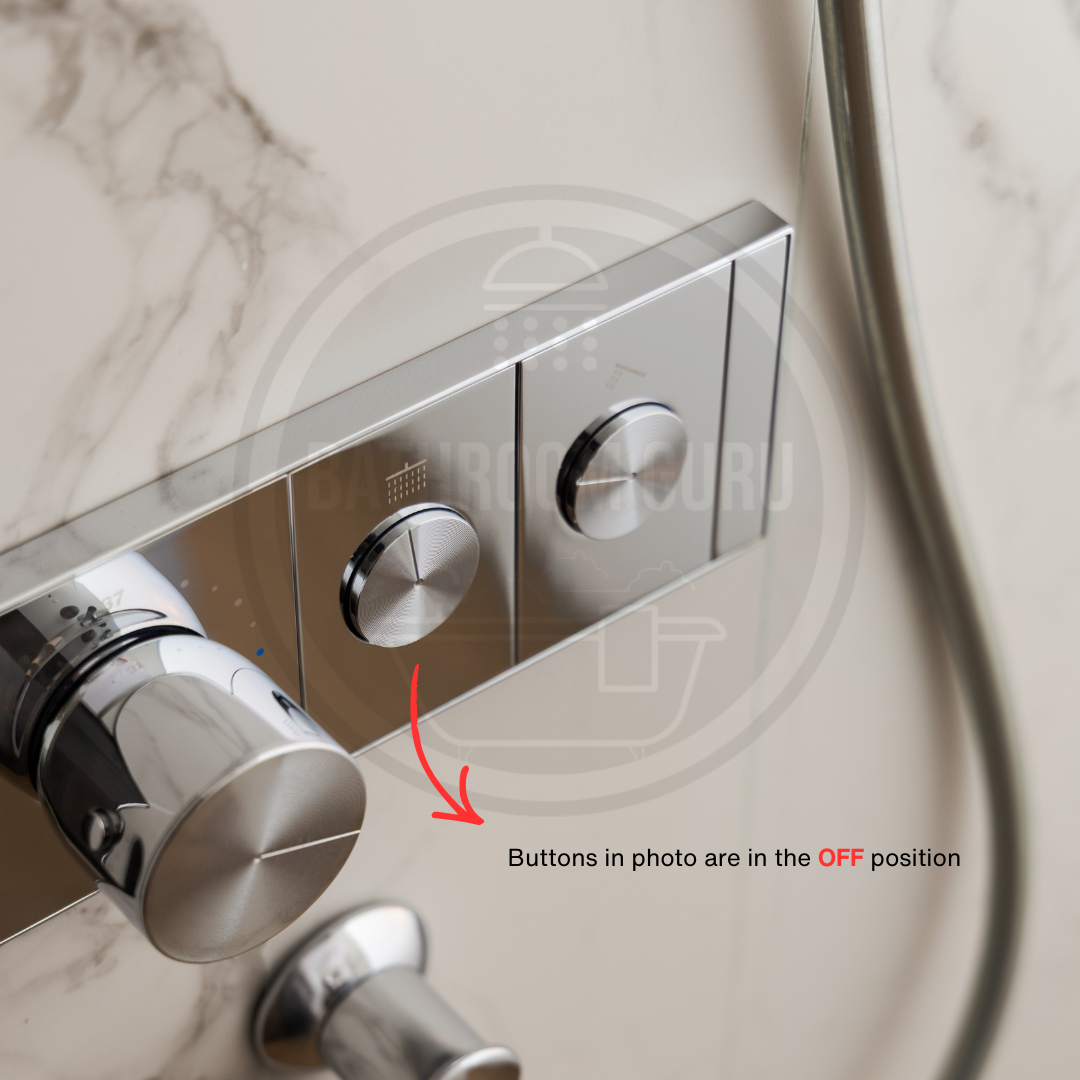

How to operate:
• When pressed once, shower outlet turns on and button pops
out, becoming a knob for water flow adjustment.
• When pressed back in, water turns off and outlet button
aligns with control plate surface; flow setting remains intact.

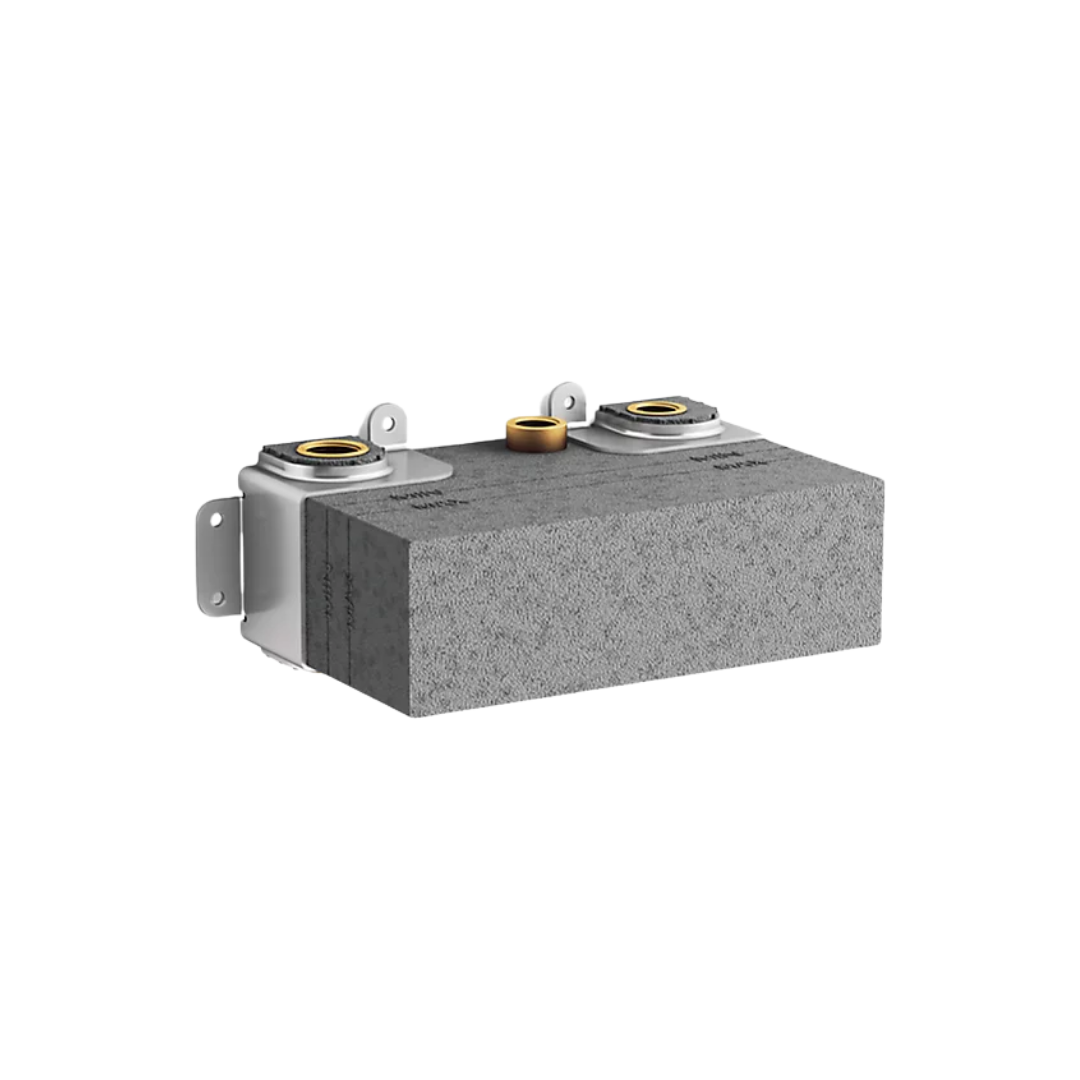

Features of the Internal Recessed Valve K-26340T-NA

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• G 3/4 female inlet connections
• G 1/2 female outlets
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

• Fully-serviceable from the front of the valve

• Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
